Thermocouple Probe K-type for EGT-K [PRO]

Thermocouple Type-K sensor for EGT [PRO]Thermocouple Type-K sensor for EGT [PRO]
Thermocouple Type-K sensor for EGT [PRO]
Thermocouple Type-K sensor for EGT [PRO] dimensions
Thermocouple Type-K sensor for EGT [PRO]
Thermocouple Type-K sensor for EGT [PRO] compression lock
Thermocouple Type-K sensor for EGT [PRO]
In stock

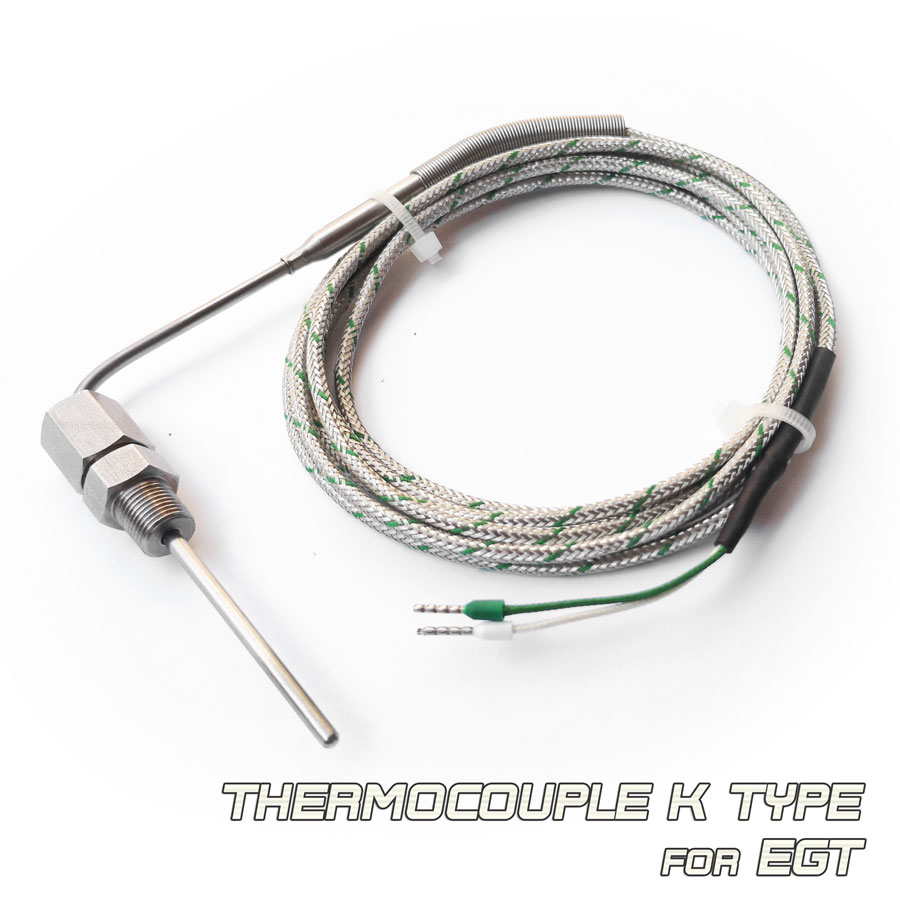

Thermocouple K-type sensor for Exhaust Gas Temperature (EGT) measurements. Professional version (alloy 600 / inconel). Temperature range: 0-1200°C (32-2192 °F), 1/8"NPT thread, 3mm diameter, adjustable lock, 2m cable.
$64.81
Length

Thermocouple sensor "K" Type is commonly used as EGT probe for Exhaust Gas Temperature measurements. This is professional version from very durable steel (inconel / alloy 600). Temperature range up to 1200°C (peak) or 1000°C (continous). 3mm diameter (fast response). We have also in offer budget version from stainless steel - please check related products.

Specification:

- Thermocouple type "K",
- Operating temperature:
   - peak: 0 - 1200 °C (32 - 2192 °F),
   - continous: 0 - 1000 °C (32 - 1832 °F)
- Class 1,
- Probe material: alloy 600 / inconel
- Probe diameter: 3mm
- Probe length: 90mm (adjustable lock for probe in range of 0-50mm)
- Thread size: 1/8" NPT
- Thread lock: adjustable compression lock (adjustable length)
- Cable length: 2m by default or 4m on request (not grounded)
- Cable external shielding: stainless steel braiding
- Cable internal insulation: fiberglass

Compression lock is already in set.

Units in box: 1
Customer ReviewsLeave your reviews
Leave your reviews
1 of 1 people found the following review helpful
  · 4 years ago.
I'm very satisfied because it's really good quality. I'm tuner and I tested a lot of thermocouples from Amazon and they were not reliable (most of them were from China...), I had complaints from my customers usually after few weeks or few months of using. This one from REVELTRONICS I'm assembling from over 1 year (10+cars build) and 0 (zero!!) complaints. It's also thinner and response is faster. 100% recommended and will buy more and more.
