UTCOMP-PRO [KIT]
In stock

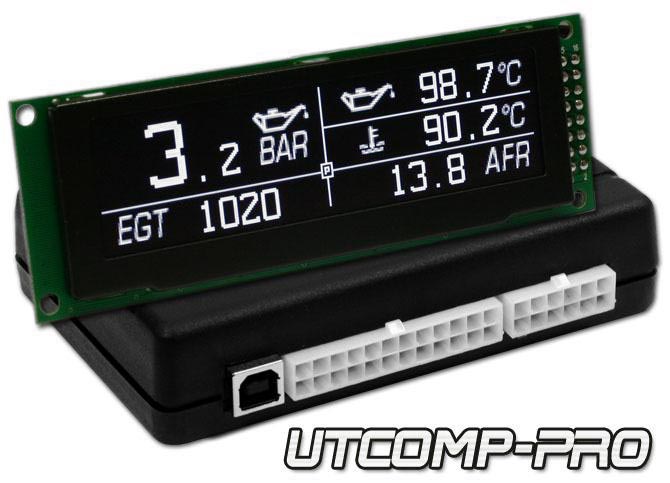

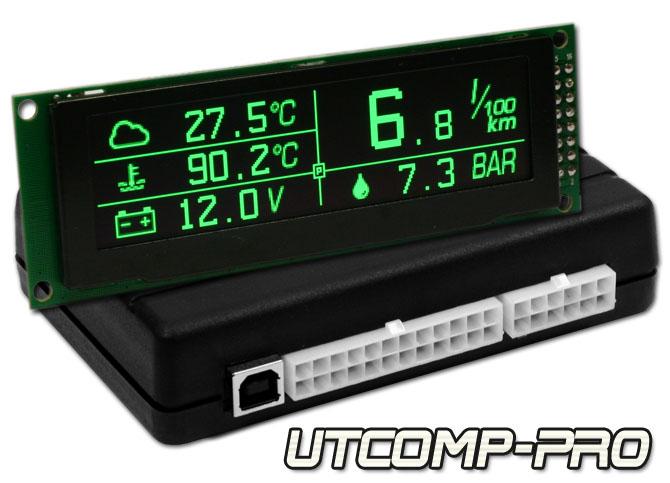

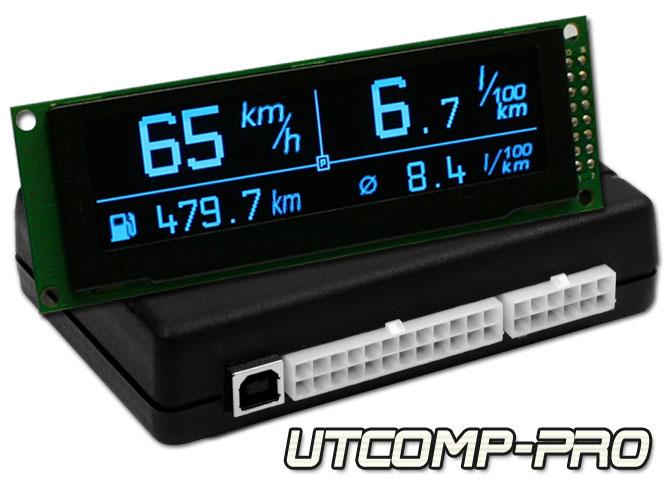

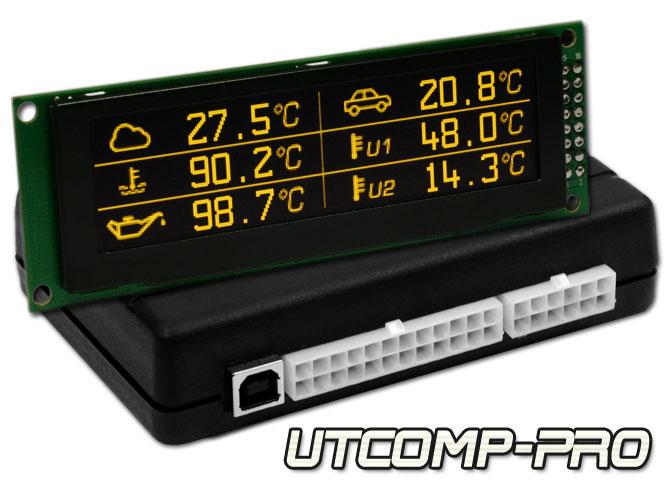

UTCOMP-PRO set with OLED 3,2" display and accessories. It supports also Android.
$181.67
All in one gauge - all important readings on single OLED display!
Connect external sensors and keep under control all important readings such as oil / water / transmission temperatures, oil / fuel / boost pressures, air fuel ratio (afr), exhaust gas temperature (egt) etc. Set customizable alerts and record data using internal data-logger. Use typical board computer functions such as speed, distance and fuel economy measurements.
Full UTCOMP-PRO description, software and manuals can be found in Products -> UTCOMP-3 / UTCOMP-PRO.
UTCOMP-PRO OLED Kit includes:
- Universal Trip Computer (UTCOMP-PRO) - main control module (PRO version),
- OLED 3,2" display (please choose display type from drop-down menu),
- display tape (~ 100cm),
- 24pin connector with 10-15cm cables to solder,
- 12pin connector with 10-15cm cables to solder,
- 2pcs. digital temperature sensors DS18B20,
- buzzer,
- 3-tactswitch keyboard,
- USB cable.
Download:
Optional:
- Display enclosure (please check related products),
- UTCOMP-PRO without display (e.g. as a data-logger only or for UTCOMP Android)
Units in box: 1
Subcategories
Customer ReviewsLeave your reviews
Leave your reviews
4 of 4 people found the following review helpful
1 years ago.
· I have had the UTCOMP Pro fitted to my car for a few years now. I have used every input on the unit and is particularly useful to connect a wideband O2 input. Overall I am pretty satisfied and there is nothing else on the market to match it. However if you want to make use the fuel computer part of it, you should look elsewhere as this part of the UTCOMP is poorly designed. Firstly, if you want to use gallons instead of Litres for your fuel tank capacity, you can only input them in whole numbers, pretty bad for any accuracy unless your tank capacity is exactly to the Gallon. Secondly, the fuel sender input to the UTCOMP can be calibrated for Empty and Full voltages ok, but the "Fuel Remaining" and "Remaining Miles" displays fluctuate so much when driving that they are totally useless. There appears to be no dampening of any kind on these displays (unlike a normal analogue Fuel Gauge). When this was pointed out to Reveltronics they said that "Fuel Remaining" and "Remaining Miles" were calculated from the mpg rather than relating directly to the Fuel Tank sender signal and that there was no workaround for this problem. So really, the only useable displays of the Fuel Computer part of the UTCOMP is "Average MPG" (which can be calibrated over time pretty accurately) and the UTCOMP "Fuel Tank" capacity screen itself which appears to be adequately damped. You will have to calculate the "Miles Remaining" yourself on a calculator if you want any form of accuracy. I was somewhat disappointed with this part of the UTCOMP. I was hoping that it may offer the same accuracy as a production car fuel computer, but if falls way short of that unfortunately.
Was this review helpful to you?
0 of 0 people found the following review helpful
1 years ago.
· Hi! My car is evo 6, and the meter used is a defi genuine product. I would like to ask if I can add your product to the defi sensor?
Was this review helpful to you?
4 of 4 people found the following review helpful
3 years ago.
· I have an Audi TT MK1 and a colorMFA where I can get some data though CAN bus but with UTCOMP now I can get EGT, AFR and Fuel pressure on a specific screen and datalog all this... that is great for engine tunning and ensure the health of our cars !
Furthermore the whole HW is very good qality as for the sensors, Arthur does know the whole industrialization flow with software support, pretty rare !
very good...
Furthermore the whole HW is very good qality as for the sensors, Arthur does know the whole industrialization flow with software support, pretty rare !
very good...
Was this review helpful to you?
3 of 3 people found the following review helpful
6 years ago.
· I used few months basic version and replaced it with pro and in my opinion the difference is huge. I can give 4 stars for UTCOMP-3 and 5 stars for UTCOMP-PRO. First of all - number of inputs - I can connect more sensors to pro version (the reason why I changed). Secondly - OLED display - it is gorgeous. Black is black and contrast is phenomenal. OLED from pro version is also noticeable bigger and has prettier icons. There is more differences but I mention from my point of view. So if you do not need to connect a lot of sensors, LCD display is fine for you and you do not need these extra features than basic version is good choice. If you want to have better display (and you have place for it) or more inputs for analog sensors then I recommend pro version.
Was this review helpful to you?
Hi Matt. Thanks for your reviews. I'd like to only mention that utcomp-pro has also additional memory for data-logger (missing in utcomp-3), output switch e.g. for relay control (also missing in utcomp-3) and 4 user customizable screens (vs. 1 user screen in utcomp-3). PRO version has also more accurate analog measurements because each unit has calibrated internal voltage reference (adc inputs accuracy +/- 0,02V in UTCOMP-PRO vs +/- 0,05V in UTCOMP-3). All differences are listed here: https://forum.reveltronics.com/viewtopic.php?f=28&t=176
2 of 2 people found the following review helpful
6 years ago.
· bought pro version few months ago (which is awesome), meanwhile received update with new features and now I noticed android app which is very nice addon - I like how they care about product and customers.
Was this review helpful to you?
1 of 2 people found the following review helpful
7 years ago.
· Great device.
Really quick email support.
Really quick email support.
Was this review helpful to you?
1 of 1 people found the following review helpful
7 years ago.
· Komputerek zakupiony plus czujniki takie jak;
Analogowy czujnik temperatury typu NTC
Precyzyjny analogowy czujnik ciśnienia o zakresie pomiarowym do 150 PSI (10 BAR)
Sprzedawca bardzo mily i bardzo, ale bardzo pomocny.Nawet w piatek wieczorem potrafil mi napisac email co i jak powinno sie robic. Naprawde polecam ten komputerek jest super sprawa jak i tego sprzedawce. Autko do ktorego zamontowalem ten komputerek to Opel Astra 2.0 dti. Wszystko smiga jak powinno. Pozdrawiam
Analogowy czujnik temperatury typu NTC
Precyzyjny analogowy czujnik ciśnienia o zakresie pomiarowym do 150 PSI (10 BAR)
Sprzedawca bardzo mily i bardzo, ale bardzo pomocny.Nawet w piatek wieczorem potrafil mi napisac email co i jak powinno sie robic. Naprawde polecam ten komputerek jest super sprawa jak i tego sprzedawce. Autko do ktorego zamontowalem ten komputerek to Opel Astra 2.0 dti. Wszystko smiga jak powinno. Pozdrawiam
Was this review helpful to you?
1 of 1 people found the following review helpful
7 years ago.
· Komputer subaru BAJA Transakcja przebiegła pomyślnie. Polecam
Was this review helpful to you?
1 of 1 people found the following review helpful
8 years ago.
· Awesome product, fast shipping, well packed - Very Happy AAA+++
Was this review helpful to you?
0 of 0 people found the following review helpful
8 years ago.
· very happy with product and service
Was this review helpful to you?
